Engineering cases

Project references for industrial heating applications.

Real site references from electric heating, multilayer presses, belt drying rooms, compound machines, dryers, reactors and kneading machine heating projects.

Get Technical Proposal WhatsApp Engineer Call +86 18105104455

Project references for industrial heating applications.

Project experience

Application references for similar heating projects.

Use these site references to discuss your own heating load, target temperature, production line layout and control requirements with Yigao engineers.

Hot press and panel production

Heating support for multilayer presses, single presses, belt presses and woodworking production equipment.

Drying and hot-air systems

Heating equipment for drying rooms, belt dryers, hot-air circulation and curing processes.

Reactors and process machines

Thermal oil and electric heating support for reaction kettles, compound machines and kneading machines.

Factory site references

Real project photos with application notes.

Each case below uses an on-site photo from the factory floor, paired with the heating application, equipment type and practical project value.

Electric heating retrofit

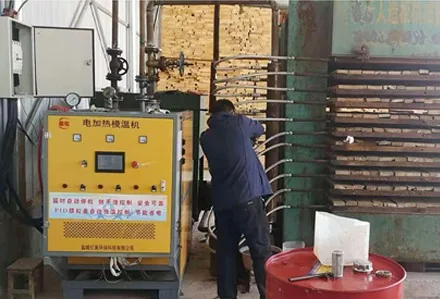

Electric Heating Site

On-site electric heating equipment connected to press or process heating points for direct temperature control.

Equipment: Electric heating control cabinet
Site value: The reference demonstrates an installed electric-heating cabinet layout and practical connection planning for a retrofit. Temperature accuracy, energy saving and service life are not claimed without order-specific test records.
Project notes: Similar projects should be reviewed with the buyer's process data and drawings.

View case details

Multilayer press heating

Electric Heating Zone for Multilayer Press

Heating zone equipment arranged beside a multilayer press line for panel and sheet production.

Equipment: Electric heating zone system
Site value: The reference shows a distributed heating-zone arrangement beside a large press structure. Final temperature uniformity and capacity should be verified with the project test record.
Project notes: Similar projects should be reviewed with the buyer's process data and drawings.

View case details

Press forming

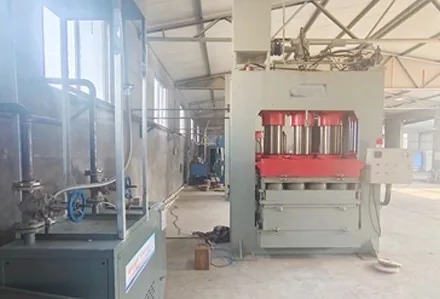

Electric Heating Press

Electric heating support for press forming equipment requiring stable platen or mold temperature.

Equipment: Electric heating equipment for press machine
Site value: The case is useful as a press-heating reference for localized electric heat. Actual forming quality and temperature stability must be confirmed from the buyer's process data and test records.
Project notes: Similar projects should be reviewed with the buyer's process data and drawings.

View case details

Drying room heating

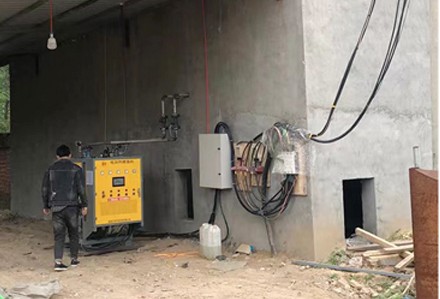

Electric Heating Belt Drying Room

Heating equipment installed beside a belt drying room for continuous drying or curing processes.

Equipment: Electric heating cabinet and duct heating support
Site value: The reference shows heating equipment installed beside a belt drying room. Any faster drying, energy saving or output improvement should be treated as unverified unless supported by measured project data.
Project notes: Similar projects should be reviewed with the buyer's process data and drawings.

View case details

Wood panels and furniture

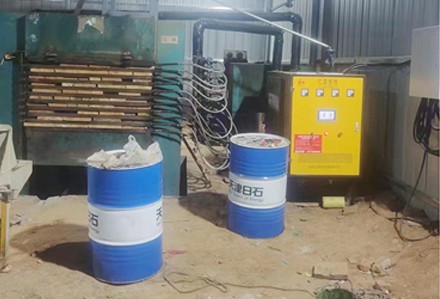

Wood Heating Industry

Factory heating support for wood processing equipment such as presses, drying points and production fixtures.

Equipment: Electric heating system
Site value: The reference supports similar wood-processing heating discussions, especially where a site retrofit needs practical layout review. Product quality claims require buyer-side production data.
Project notes: Similar projects should be reviewed with the buyer's process data and drawings.

View case details

Coating and composite materials

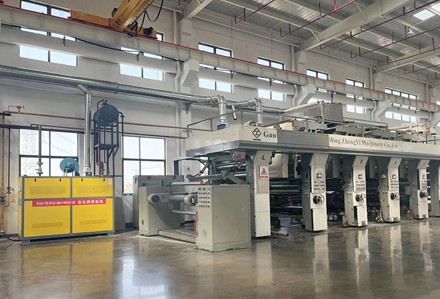

Compound Machine Heating

Heating support for compound machine production lines used in laminating, coating or web material processing.

Equipment: Thermal oil / electric heating equipment
Site value: The site reference shows heating equipment used with a compound-machine production line. Claims about output, adhesion quality or energy saving should be confirmed by project records.
Project notes: Similar projects should be reviewed with the buyer's process data and drawings.

View case details

Industrial drying

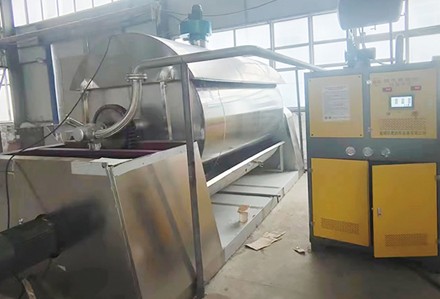

Dryer Heating

Heating equipment matched to dryer systems for material drying, curing and moisture removal.

Equipment: Hot air or electric heating system
Site value: The reference can help buyers discuss dryer heating layout and quotation inputs. Faster drying response or steadier chamber temperature should be verified by measured data for the actual dryer.
Project notes: Similar projects should be reviewed with the buyer's process data and drawings.

View case details

Chemical and adhesive production

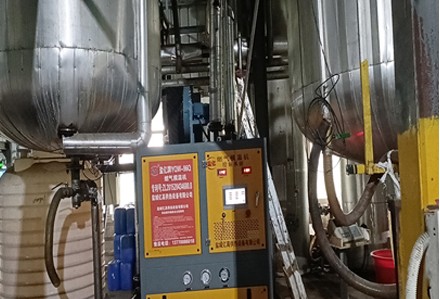

Reaction Kettle Heating

On-site heating system connected to reaction kettle equipment for batch temperature control.

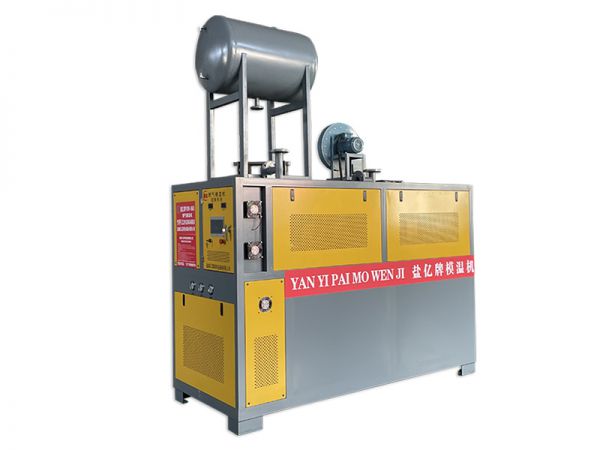

Equipment: Thermal oil heating / gas-fired mold temperature controller
Site value: The reference demonstrates a heating system connected to reaction-kettle equipment. Batch consistency, reaction yield or energy savings are not claimed without buyer test data.
Project notes: Similar projects should be reviewed with the buyer's process data and drawings.

View case details

Reactor heating system

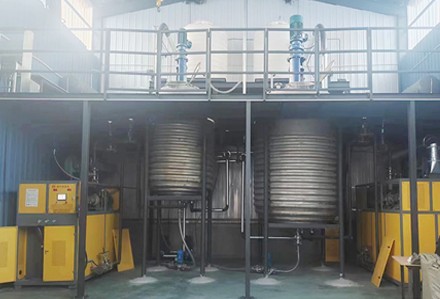

Heating Reactor

Multiple reactor heating points served by a centralized or grouped heating arrangement.

Equipment: Thermal oil circulation heating
Site value: The case is useful for discussing multi-point reactor heating layout. Performance must be verified per vessel and per batch condition rather than assumed from the photograph.
Project notes: Similar projects should be reviewed with the buyer's process data and drawings.

View case details

Single press heating

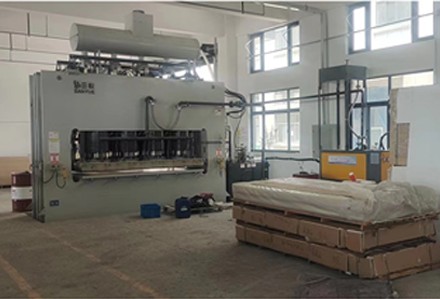

Electric Heating Zone for Single Press

Heating zone configuration for a single press or forming station with localized temperature control.

Equipment: Electric heating zone equipment
Site value: The reference shows an independent heating approach for a single press station. The exact heating speed and temperature stability depend on the confirmed configuration.
Project notes: Similar projects should be reviewed with the buyer's process data and drawings.

View case details

Belt press heating

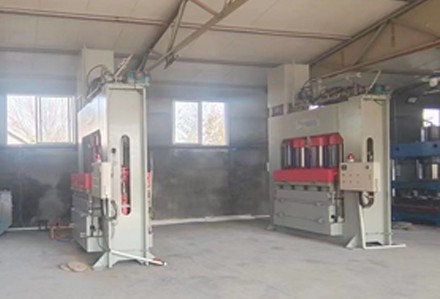

Electric Heating Belt Press

Electric heating equipment used with a belt press or continuous pressing process.

Equipment: Electric heating system
Site value: The case supports belt-press heating discussions and layout comparison. Repeatability claims should be confirmed through the buyer's process test data.
Project notes: Similar projects should be reviewed with the buyer's process data and drawings.

View case details

Rubber, chemical and material processing

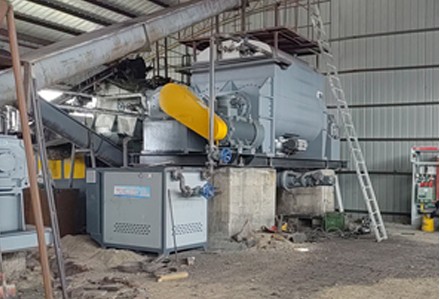

Kneading Machine Heating

Heating support for kneading machine production where viscous materials need controlled temperature.

Equipment: Thermal oil or electric heating support
Site value: The reference is useful for heavy-duty mixing and kneading heating inquiries. Claims about material quality improvement or long-term operation require project records.
Project notes: Similar projects should be reviewed with the buyer's process data and drawings.

View case details

Application notes

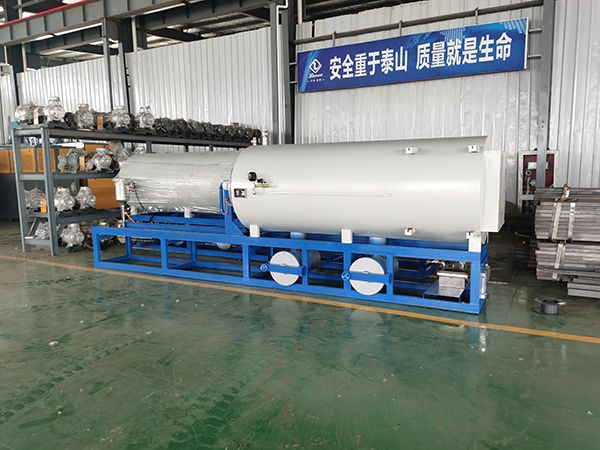

Vacuum cleaning systems for polymer residues and precision industrial components.
