Electric thermal oil circulation
Electric thermal oil furnace for reactors, rollers, molds and process machines requiring 0–300 °C circulating oil temperature control.
Product parameters
Technical reference for initial selection. Final design depends on the site conditions and approved configuration.
Swipe horizontally to view all specifications.
| Model | Power | Heater Barrel Size | Expansion Tank Size | Connection Dia. | Pump Head | Pump Flow | Motor Power | Temp. Range |
|---|---|---|---|---|---|---|---|---|
| YY-5 | 5 kW | 80 x 700 mm | 400 x 400 mm | DN20 | 22 m | 1.5 m³/h | 0.75 kW | 0–300 °C adjustable |
| YY-10 | 10 kW | 80 x 700 mm | 400 x 400 mm | DN20 | 22 m | 1.5 m³/h | 0.75 kW | 0–300 °C adjustable |
| YY-15 | 15 kW | 150 x 800 mm | 400 x 400 mm | DN25 | 28 m | 3 m³/h | 1.5 kW | 0–300 °C adjustable |
| YY-20 | 20 kW | 150 x 800 mm | 400 x 400 mm | DN25 | 28 m | 3 m³/h | 1.5 kW | 0–300 °C adjustable |
| YY-25 | 25 kW | 150 x 800 mm | 400 x 400 mm | DN32 | 28 m | 6 m³/h | 1.5 kW | 0–300 °C adjustable |
| YY-30 | 30 kW | 150 x 800 mm | 400 x 400 mm | DN32 | 28 m | 6 m³/h | 1.5 kW | 0–300 °C adjustable |
| YY-40 | 40 kW | 150 x 800 mm | 500 x 600 mm | DN40 | 28 m | 10 m³/h | 2.2 kW | 0–300 °C adjustable |
| YY-50 | 50 kW | 150 x 800 x 2 sections | 500 x 600 mm | DN40 | 28 m | 10 m³/h | 2.2 kW | 0–300 °C adjustable |
| YY-60 | 60 kW | 150 x 800 x 2 sections | 500 x 600 mm | DN50 | 30 m | 12.5 m³/h | 3 kW | 0–300 °C adjustable |
| YY-70 | 70 kW | 150 x 800 x 2 sections | 500 x 600 mm | DN50 | 30 m | 12.5 m³/h | 3 kW | 0–300 °C adjustable |
| YY-80 | 80 kW | 150 x 800 x 2 sections | 500 x 600 mm | DN50 | 30 m | 12.5 m³/h | 3 kW | 0–300 °C adjustable |
| YY-90 | 90 kW | 150 x 800 x 3 sections | 500 x 600 mm | DN50 | 40 m | 18 m³/h | 5.5 kW | 0–300 °C adjustable |
| YY-100 | 100 kW | 150 x 800 x 3 sections | 500 x 600 mm | DN50 | 40 m | 18 m³/h | 5.5 kW | 0–300 °C adjustable |
| YY-120 | 120 kW | 150 x 800 x 3 sections | 500 x 600 mm | DN65 | 48 m | 30 m³/h | 7.5 kW | 0–300 °C adjustable |
| YY-135 | 135 kW | 150 x 800 x 4 sections | 500 x 600 mm | DN65 | 48 m | 30 m³/h | 7.5 kW | 0–300 °C adjustable |
| YY-150 | 150 kW | 150 x 800 x 4 sections | 700 x 800 mm | DN65 | 48 m | 30 m³/h | 7.5 kW | 0–300 °C adjustable |
| YY-180 | 180 kW | 200 x 1200 x 3 sections | 700 x 800 mm | DN65 | 40 m | 45 m³/h | 11 kW | 0–300 °C adjustable |
| YY-240 | 240 kW | 200 x 1200 x 4 sections | 700 x 800 mm | DN65 | 40 m | 45 m³/h | 11 kW | 0–300 °C adjustable |
| YY-280 | 280 kW | 250 x 1600 x 3 sections | 700 x 800 mm | DN65 | 40 m | 45 m³/h | 11 kW | 0–300 °C adjustable |
| YY-300 | 300 kW | 250 x 1600 x 3 sections | 800 x 1000 mm | DN80 | 50 m | 50 m³/h | 15 kW | 0–300 °C adjustable |
| YY-360 | 360 kW | 250 x 1600 x 3 sections | 800 x 1000 mm | DN80 | 50 m | 50 m³/h | 15 kW | 0–300 °C adjustable |
| YY-400 | 400 kW | 250 x 1600 x 4 sections | 800 x 1000 mm | DN100 | 54 m | 60 m³/h | 22 kW | 0–300 °C adjustable |
| YY-450 | 450 kW | 250 x 1600 x 4 sections | 1000 x 1200 mm | DN100 | 54 m | 60 m³/h | 22 kW | 0–300 °C adjustable |
| YY-480 | 480 kW | 250 x 1600 x 4 sections | 1000 x 1200 mm | DN100 | 54 m | 60 m³/h | 22 kW | 0–300 °C adjustable |
| YY-600 | 600 kW | 300 x 1800 x 3 sections | 1000 x 1200 mm | DN150 | 65 m | 90 m³/h | 30 kW | 0–300 °C adjustable |
| YY-1000 | 1000 kW | 300 x 1800 x 4 sections | 1000 x 1200 mm | DN150 | 72 m | 95 m³/h | 37 kW | 0–300 °C adjustable |
The heating elements are inserted into the organic carrier thermal oil and heat it directly; a circulation pump forces liquid-phase circulation so heat is continuously transferred to one or more heat-using machines.

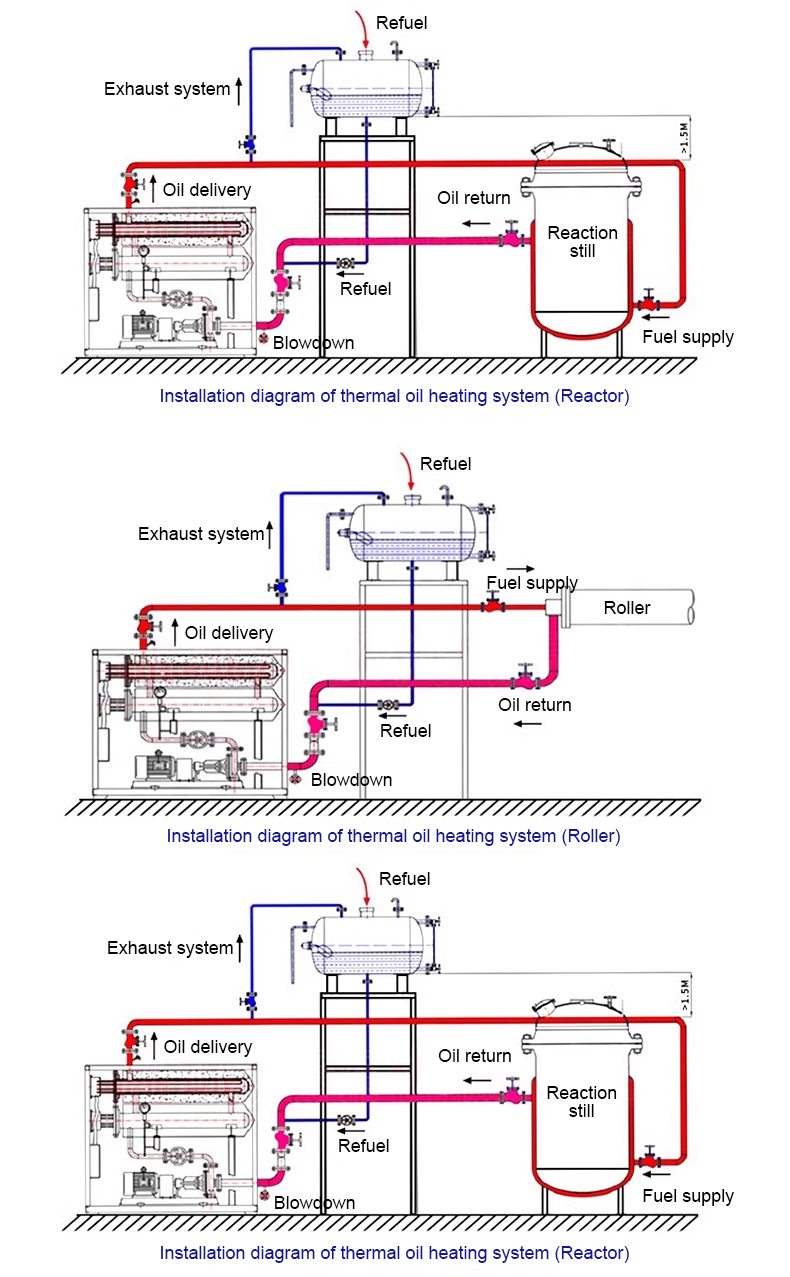

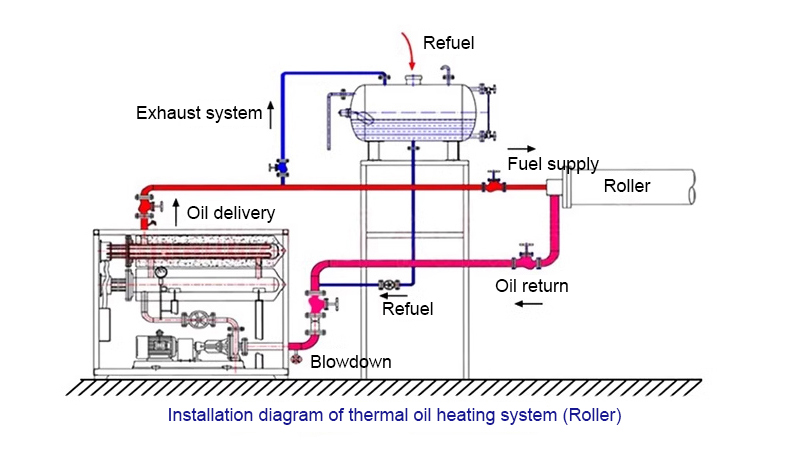

The oil outlet sends heated thermal oil to the heat-using equipment, then the return line brings oil back to the electric heater for continuous reheating, forming a complete circulation system.
The electric thermal oil circulation process does not require water supply during operation, helping keep the equipment exterior dry and reducing rust and scale risks.
Temperature, circulation and heating time can be adjusted for low-temperature holding or higher-temperature process heating, depending on the production requirement.
The equipment is configured around electric heating tubes, oil pump, control cabinet, digital temperature control, over-temperature alarm, low oil level alarm, overpressure alarm and the required inlet and outlet pipe diameter.
Custom configuration
The electric thermal oil heater can be built around the required voltage, heating power, oil circulation volume and equipment connection layout.
Please send voltage, target power, heat load, working temperature, thermal oil capacity, pipe diameter, installation space, reactor or roller dimensions and equipment drawings.
Ordering information
For custom heating equipment, commercial terms and document scope are confirmed after the technical configuration, quantity and destination requirements are reviewed.
Buyer FAQ
Electric Thermal Oil Heater is used for Reaction kettle heating, Roller heating, Food and chemical process heating, Oil and grease processing. Final selection should be based on the working medium, target temperature, capacity and installation conditions.
The electric thermal oil heater can be built around the required voltage, heating power, oil circulation volume and equipment connection layout.
Please send voltage, target power, heat load, working temperature, thermal oil capacity, pipe diameter, installation space, reactor or roller dimensions and equipment drawings.
MOQ and production lead time depend on the selected power, material, control system, dimensions, quantity and order-specific engineering work. Ask Yigao to confirm both items in the written quotation after the technical configuration is agreed.
Certification and test-document availability varies by model, components and destination market. State the required standard and destination country during inquiry, then ask Yigao to list the applicable documents in the quotation. Do not assume one certificate covers every custom configuration.
Yigao provides technical consultation and equipment coordination. The exact warranty, commissioning, spare-parts, remote-support and on-site service scope should be confirmed in the written quotation or contract for the selected configuration and destination.
