Air Duct Heater

Custom electric air duct heating equipment for drying rooms, ovens and hot-air circulation systems that need stable forced-air temperature control.

Get Technical Proposal WhatsApp Engineer Call +86 18105104455

Product parameters

Technical reference and model data.

Heating methodElectric forced-air duct heating

Rated power10-1000 kW YY-FD reference models

Voltage380 V reference, confirm by order

Temperature rangeAmbient to 800 C reference range

Temperature control+/-1 C reference accuracy

Inner chamber300 x 300 x 300 to 2000 x 1000 x 1000 mm

Outlet diameterDN100-DN600 by model

FD-30 reference30 kW, 9 tubes, 400 x 400 x 400 mm chamber

MaterialsQ235 body, 304 stainless heating tube; stainless steel or carbon steel options

Insulation50 mm silicate cotton reference

FanYN5-47 / 4-72 / Y5-47 fan options by model

CustomizationPower, duct size, flange, fan, material, control cabinet and sensor layout

YY-FD Series Specification

Reference model data for initial selection. The public model prefix is standardized as YY.

Model	Power	Inner Chamber	Overall Size	Outlet Dia.	Matched Fan	Fan Power
YY-FD-10	10 kW	300 x 300 x 300 mm	900 x 400 x 700 mm	DN100	YN5-47 boiler fan	0.37 kW
YY-FD-20	20 kW	500 x 300 x 300 mm	1100 x 400 x 700 mm	DN200	YN5-47 boiler fan	0.37 kW
YY-FD-30	30 kW	400 x 400 x 400 mm	1000 x 500 x 800 mm	DN300	YN5-47 boiler fan	0.75 kW
YY-FD-40	40 kW	500 x 400 x 400 mm	1100 x 500 x 800 mm	DN300	YN5-47 boiler fan	0.75 kW
YY-FD-50	50 kW	600 x 400 x 400 mm	1200 x 500 x 800 mm	DN350	YN5-47 boiler fan	1.1 kW
YY-FD-60	60 kW	700 x 400 x 400 mm	1300 x 500 x 800 mm	DN350	YN5-47 boiler fan	1.5 kW
YY-FD-80	80 kW	700 x 400 x 500 mm	1300 x 500 x 900 mm	DN350	YN5-47 boiler fan	2.2 kW
YY-FD-100	100 kW	900 x 400 x 500 mm	1500 x 500 x 900 mm	DN350	4-72 centrifugal fan 3.6A	3 kW x 2
YY-FD-120	120 kW	1000 x 400 x 500 mm	1600 x 500 x 900 mm	DN350	4-72 centrifugal fan 4A	5.5 kW x 2
YY-FD-150	150 kW	700 x 750 x 500 mm	1300 x 850 x 900 mm	DN400	4-72 centrifugal fan 4A	5.5 kW x 2
YY-FD-180	180 kW	800 x 750 x 500 mm	1400 x 850 x 900 mm	DN400	4-72 centrifugal fan 4.5A	7.5 kW x 2
YY-FD-200	200 kW	800 x 750 x 600 mm	1400 x 850 x 1000 mm	DN450	4-72 centrifugal fan 4.5A	7.5 kW x 2
YY-FD-250	250 kW	1000 x 750 x 600 mm	1700 x 850 x 1000 mm	DN500	4-72 centrifugal fan 4.5A	7.5 kW x 2
YY-FD-300	300 kW	1200 x 750 x 600 mm	1900 x 850 x 1000 mm	DN500	4-72 centrifugal fan 4.5A	7.5 kW x 2
YY-FD-350	350 kW	1000 x 800 x 900 mm	1700 x 900 x 1400 mm	DN500	4-72 centrifugal fan 5A	15 kW x 2
YY-FD-420	420 kW	1200 x 800 x 900 mm	1900 x 900 x 1400 mm	DN500	4-72 centrifugal fan 5A	15 kW x 2
YY-FD-480	480 kW	1400 x 800 x 900 mm	2100 x 900 x 1400 mm	DN500	4-72 centrifugal fan 5A	15 kW x 2
YY-FD-600	600 kW	1600 x 1000 x 1000 mm	2300 x 1100 x 1500 mm	DN600	Y5-47 boiler fan 6C	18.5 kW x 2
YY-FD-800	800 kW	1800 x 1000 x 1000 mm	2500 x 1100 x 1500 mm	DN600	Y5-47 boiler fan 6C	18.5 kW x 2
YY-FD-1000	1000 kW	2000 x 1000 x 1000 mm	2700 x 1100 x 1500 mm	DN600	Y5-47 boiler fan 7C	30 kW x 2

Product Diagrams

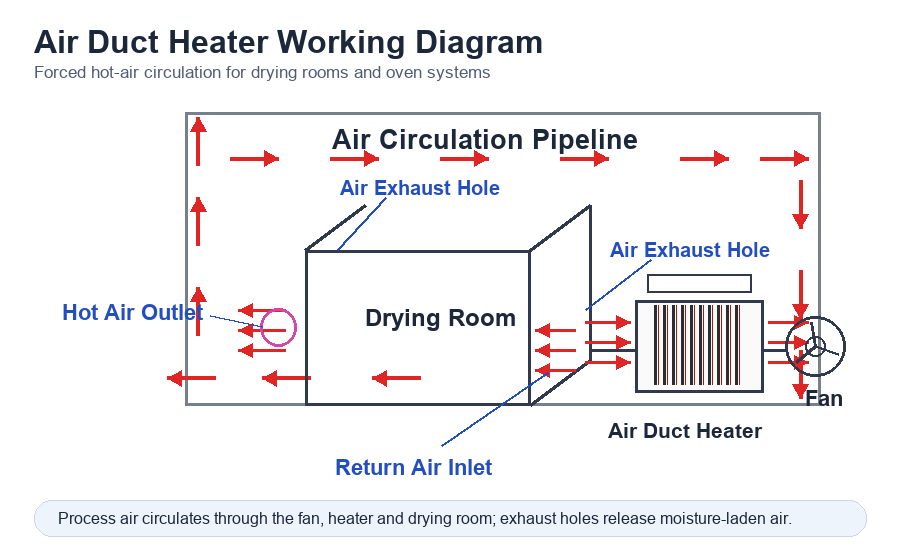

English working diagram of air duct heater hot-air circulation — **Working Diagram**Forced air circulates through the fan, duct heater and drying room; exhaust holes release moisture-laden air.

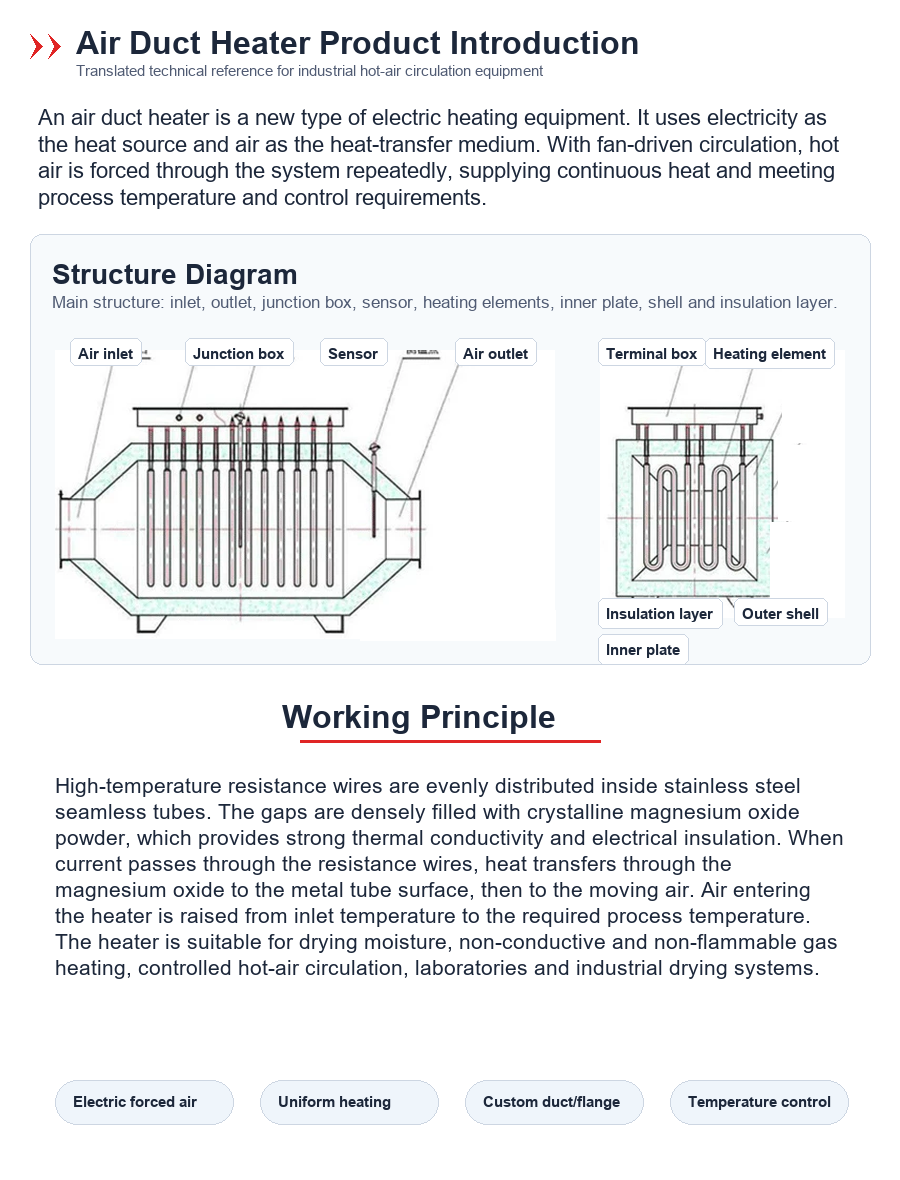

English product introduction and structure diagram for air duct heater — **Product Introduction and Structure**Translated structure and working-principle reference based on the supplied product detail images.

Product Highlights

Uniform heatingFinned heating tubes and forced air circulation help raise air temperature evenly across the duct section.
Custom build rangePower, chamber size, flange diameter, material and fan match can be engineered around the drying room or production line.
High-temperature dutyCustom configurations can support high-temperature process air. Insulation design and acceptable external surface temperature must be confirmed and tested for the selected duty.
Easy integrationCompact duct structure can be installed near the hot-air equipment without a traditional boiler room.

Technical Overview

The duct heater body includes a junction box, flange connection, insulation layer, thermocouple sensing point, finned heating tubes and an inlet fan connection.

The product is suitable for drying rooms, circulating hot-air pipelines and oven retrofit projects, including nonwoven melt-blown production, textile, paper, chemical fiber, coating, grain, food, pharmaceutical, tobacco and chemical drying applications.

The refreshed YY-FD reference table covers 10-1000 kW models, ambient to 800 C temperature range, +/-1 C temperature control accuracy, stainless steel or carbon steel body options, and customer-specific non-standard design.

The FD-30 reference drawing uses 380 V power, 30 kW total heating capacity, 9 heating tubes and single tube power of 380 V / 3.33 kW.

FD-30 reference materials include Q235 carbon steel for the inner chamber and shell, 304 stainless steel heating tubes, and 50 mm silicate cotton insulation.

The product can be selected by required power, inner chamber size, outlet diameter and matched fan model.

Typical Applications

Melt-blown nonwoven drying
Textile and paper drying
Chemical fiber process air
Electrostatic coating ovens
Grain / food / pharmaceutical drying
Hot air circulation retrofit

Custom configuration

Can be customized for your production line.

The air duct heater can be customized for drying rooms, ovens and hot-air loops by power, chamber size, outlet diameter, fan and material.

Model and power10-1000 kW YY-FD reference models can be adjusted by required temperature rise and airflow.
Chamber and outletInner chamber size, outlet diameter, flange, fan connection and installation direction can be made to fit the duct line.
Material and insulationQ235 or stainless steel body, 304 stainless heating tubes and insulation thickness can be selected by temperature and environment.
Fan and cabinetMatched fan model, control cabinet, sensor layout and safety interlock can be integrated with the drying process.

Recommended Information for Quote

Please send required power, air volume, inlet and outlet temperature, drying room or oven size, duct size, outlet flange diameter, fan model, material preference and installation drawing.

Ordering information

Commercial details to confirm before ordering.

Order typeIndustrial equipment configured against process data; standard and non-standard options depend on the selected model.

MOQConfirm in the written quotation after power, dimensions, material, control and quantity are agreed.

Lead timeConfirm after technical drawings, component selection, quantity and destination requirements are finalized.

Certificates / testsState the required market standard and ask which documents apply to the selected configuration.

Warranty / serviceConfirm warranty period, commissioning, spare parts and remote or on-site support in the contract.

For custom heating equipment, commercial terms and document scope are confirmed after the technical configuration, quantity and destination requirements are reviewed.

Buyer FAQ

Air Duct Heater FAQ

What is the Air Duct Heater used for?

Air Duct Heater is used for Melt-blown nonwoven drying, Textile and paper drying, Chemical fiber process air, Electrostatic coating ovens. Final selection should be based on the working medium, target temperature, capacity and installation conditions.

Can the Air Duct Heater be customized?

The air duct heater can be customized for drying rooms, ovens and hot-air loops by power, chamber size, outlet diameter, fan and material.

What information is needed to quote the Air Duct Heater?

Please send required power, air volume, inlet and outlet temperature, drying room or oven size, duct size, outlet flange diameter, fan model, material preference and installation drawing.

What are the MOQ and production lead time for the Air Duct Heater?

MOQ and production lead time depend on the selected power, material, control system, dimensions, quantity and order-specific engineering work. Ask Yigao to confirm both items in the written quotation after the technical configuration is agreed.

Which certification and test documents are available for the Air Duct Heater?

Certification and test-document availability varies by model, components and destination market. State the required standard and destination country during inquiry, then ask Yigao to list the applicable documents in the quotation. Do not assume one certificate covers every custom configuration.

What after-sales support is included with the Air Duct Heater?

Yigao provides technical consultation and equipment coordination. The exact warranty, commissioning, spare-parts, remote-support and on-site service scope should be confirmed in the written quotation or contract for the selected configuration and destination.
